Alright, future legends of the layout world. Let’s talk about what’s next.
You’ve mastered the 90nm, 65nm, and maybe even the 28nm planar CMOS nodes. You know about matching, parasitics, and guard rings. But the industry is moving fast. To stay at the top of your game and command the best packages in Bangalore or Hyderabad, you must look ahead to the future of analog layout
The era of simple planar transistors is over. We are deep into the FinFET age and are already peeking at what comes next. This isn’t just a change; it’s a fundamental revolution in how we design physical silicon. And for analog layout engineers, the game has changed completely.
The FinFET Shock: It’s a 3D World Now
The first thing you must understand is that with FinFETs (16nm, 7nm, 5nm), we are no longer drawing 2D shapes. We are defining 3D structures. A transistor is no longer a rectangle on a layer; it’s a fin that sticks up out of the silicon. This changes everything.
The End of “Classical” Matching: You can’t simply interdigitate transistors anymore. Matching is now defined by:
Number of Fins: A device’s strength is determined by how many fins it has (3-fin, 4-fin, etc.). Matching devices must have an identical number of fins.
Digital Mindset, Analog Reality: These nodes are designed for digital. The standard cells use fixed-height, multi-fin transistors. For analog, we have to work within these rigid rows. The freedom to just size a transistor to any width is gone. This is the biggest mental shift.
Parasitics are King (More Than Ever):
At 7nm, the resistance of a single via is a major design constraint. The capacitance between adjacent metal lines is colossal.
What this means for you: Your routing choices have a direct, non-negotiable impact on performance. Extraction at the post-layout stage is no longer a “check”; it is the core of the design process. If you don’t work hand-in-hand with the designer during layout, the circuit will simply not work.

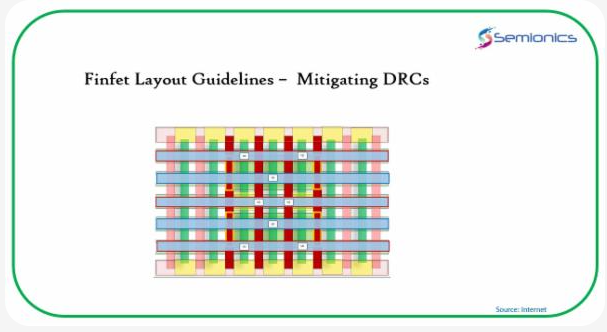

New Rules to Obey:
Boundary Rules: Placement is incredibly restrictive. You can’t place things just anywhere. Everything must align to complex grids and boundaries.
Self-Heating: Those 3D fins are tiny. Current density is huge. Heat gets trapped inside the fin, causing the device’s performance to drift. This is a new analog nightmare that we must model and mitigate through layout planning.
The “Beyond-FinFET” Horizon: GAA Transistors and CFET
The industry doesn’t stop at FinFETs. The next nodes (3nm, 2nm) use Gate-All-Around (GAA) transistors, like IBM’s Nanosheet technology. Think of it as a FinFET but with horizontal sheets of silicon surrounded by the gate on all four sides. After that, we have the Complementary FET (CFET), which stacks NMOS on top of PMOS. These advancements will redefine the future of analog layout, demanding new techniques and deeper specialization.
What does this mean for an Analog Layout Engineer?
Extreme Specialization: The gap between a digital implementation engineer and an analog layout engineer will widen into a chasm. Analog layout will become a highly specialized, elite skill.
Tool Dependency: Doing this manually is impossible. You will need to be a master of advanced EDA tools that can visualize and manipulate these 3D structures. Your value will be in guiding and correcting these tools, not in drawing polygons.
System-Technology Co-Optimization (STCO): You will need to understand how the technology choices (like the number of stacks in a GAA transistor) affect the analog performance. Layout decisions will be made at the architecture level.
So, What Should You Do Today to Stay Relevant?
This might sound scary, but for a prepared engineer, it’s the biggest opportunity. Here’s your action plan:
Master the Fundamentals: You can’t run before you walk. A deep understanding of device physics, parasitics, and matching in planar technologies is your foundation. It’s still 100% relevant because the underlying principles of electromagnetism don’t change.
Embrace the Tools: Go beyond just knowing which buttons to click. Understand why the tool does what it does. Learn how to write simple scripts for automation. TCL, Python, and Skill are not “good to have”; they are essential.
Think Like a Circuit Designer: This is the most important point. You must understand the circuit’s intent so deeply that you can anticipate the electrical impact of your physical decisions. Your job is to be the bridge between the circuit designer’s equations and the physical reality of silicon.
Get Curious: Follow research papers on IEDM and VLSI Symposia. Read about GAA, CFET, and 3D integration. You don’t need to understand the deep physics, but you must understand the implications for layout.
Final Thought: The future of analog layout is not about drawing; it’s about thinking. It’s about being a physicist, an architect, and an artist all at once. For Indian engineers, this is our chance to lead the global semiconductor industry. The companies working on these cutting-edge nodes are here. They need people who are not afraid of the complexity but are excited by it
